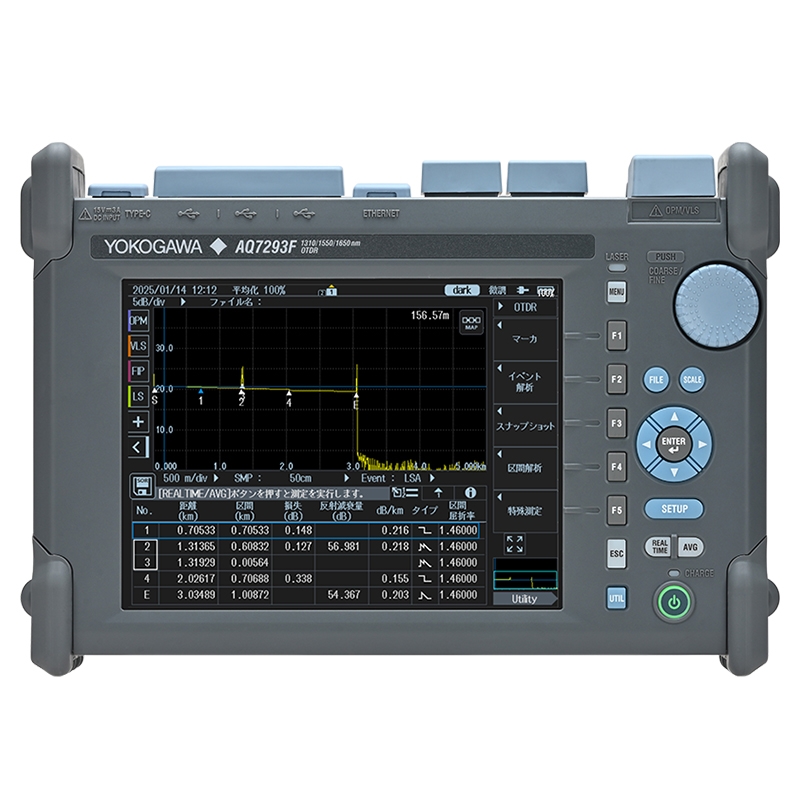

The AQ7290 OTDR offers first-class performance thanks to updated functions,
a large capacity battery, and a large user-friendly screen. Additional benefits
that ensure measurement quality and improve work efficiency include:
Superior OTDR performance
• Up to 6 OTDR model to choose from
• Improved dynamic range
• Improved event detection performance
• High reflection real time measurement
Pursuit of ease of use
• 8.4-inch high luminance color LCD
• Smartphone-like usability
• Wireless LAN adapter support enables remote control
Reliable workability
• Multi-fiber measurement up to 2000 fibers
• Auto-execute multiple measurements and analyses with Smart Mapper
• Simple OTDR function for beginners Much more than an OTDR
• Variety of optional features for multi-tasking
• Application software that supports analysis
• Efficient multi-fiber measurement

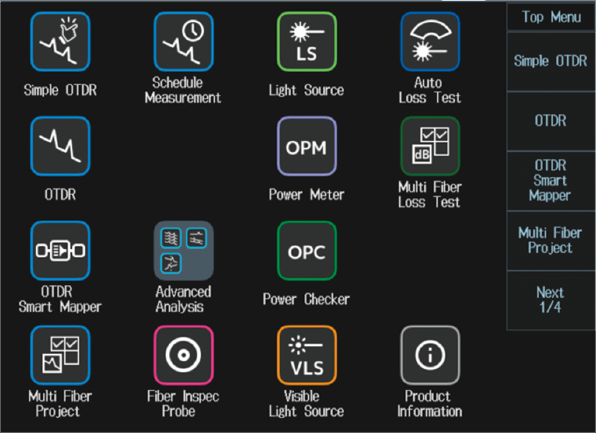

Touch panel application menu
The 8.4-inch touchscreen enables intuitive operation. Select the desired function by simply tapping the icon on the main menu.

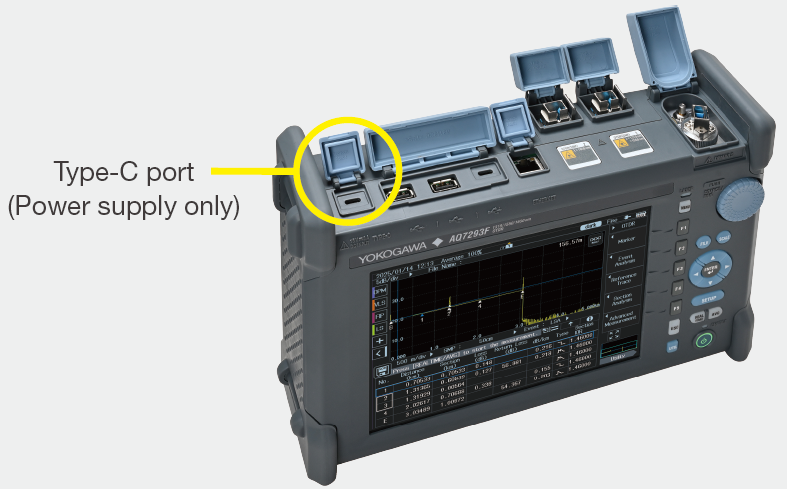

USB Type-C power supply
AQ7290 supports power supply from USB Type-C. It does not require a dedicated AC adapter and can be charged by using power adapter* that supports USB power delivery. In addition, It can also be powered from a mobile battery, allowing it to respond to sudden dispatch with ease.
* USB Power delivery 2.0 or later, an adapter with an output of 45 W or more is required. For details, please refer to the specifications page.

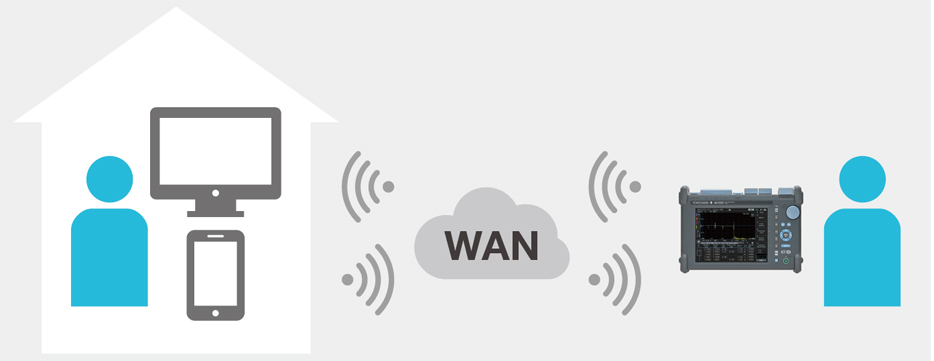

Remote control
By using a commercially available wireless LAN adapter and Wi-F router, OTDRs can be operated remotely. This allows users to operate and check OTDRs in the field from the office or home, it is ideal for business support by veterans and saving labors.
Work in the field can be checked from the office or home Start

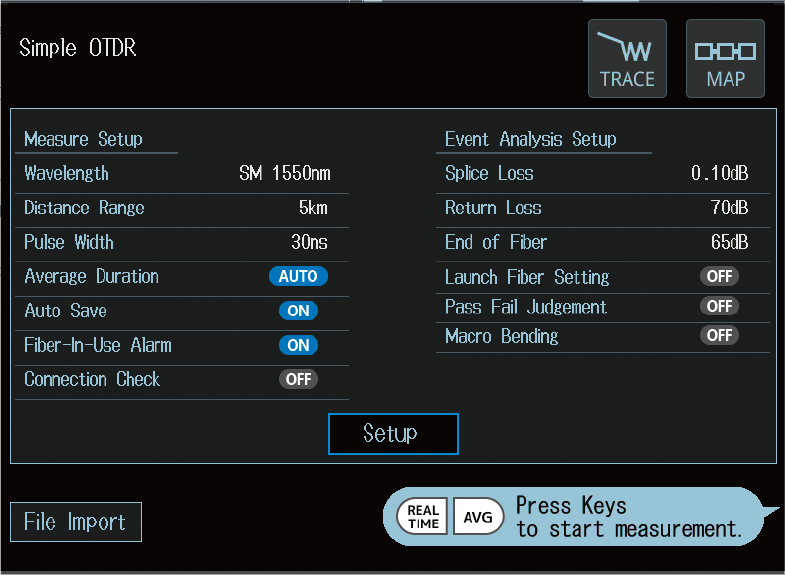

Simple OTDR for easy measurement
The AQ7290 has a new “Simple OTDR” function. A simple screen allows for setup and measurement, a pop-up window assists on saving and other tasks after measurement.
Start measurement with a single button from the settings screen

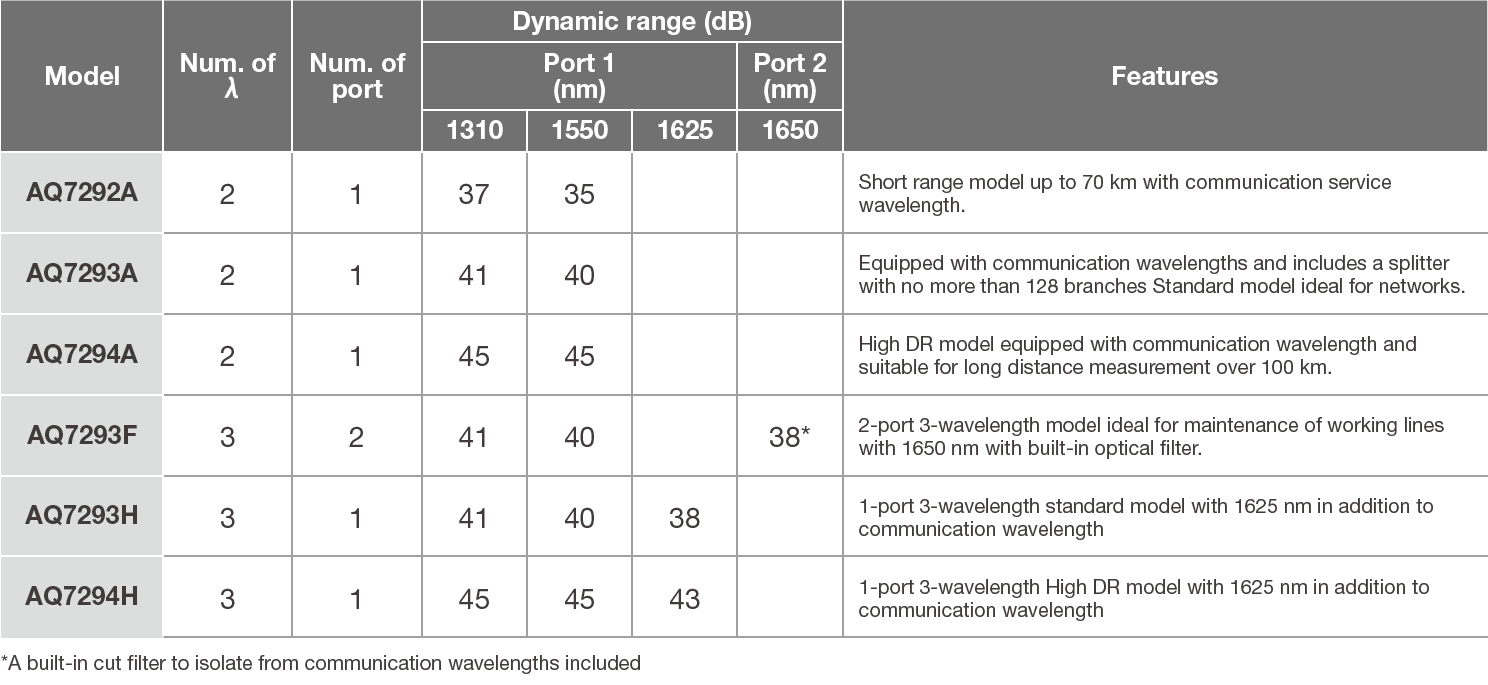

Yokogawa OTDR model map

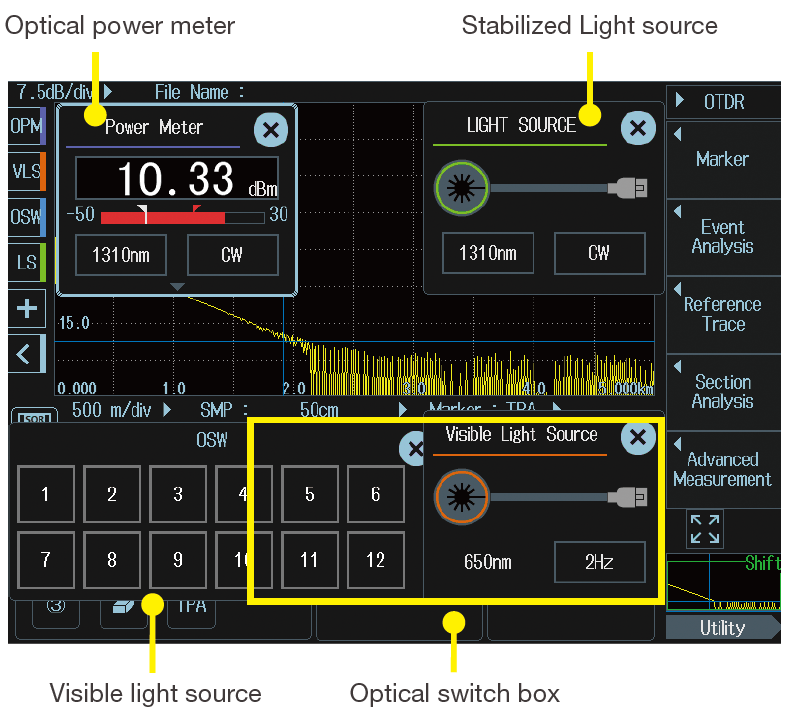

Multi-tasking
Functions other than OTDR can be used at the same time by activating them from the OTDR measurement screen. This unique multi-tasking feature reduces measurement idle time and revolutionizes the test process by enabling simultaneous parallel testing instead of serial testing. Multi-tasking features include Stabilized light source, visible light source, power checker, optical power meter, fiber surface image display, and optical switch box are available for multi-tasking.
* The stabilized light source and power checker cannot be used simultaneously with the OTDR.
Fiber inspection probe surface display and optical switch box cannot be used at the same time.
Multi-language support
The AQ7290 OTDR series offers users multiple display languages including but not limited to: Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, and Turkish.

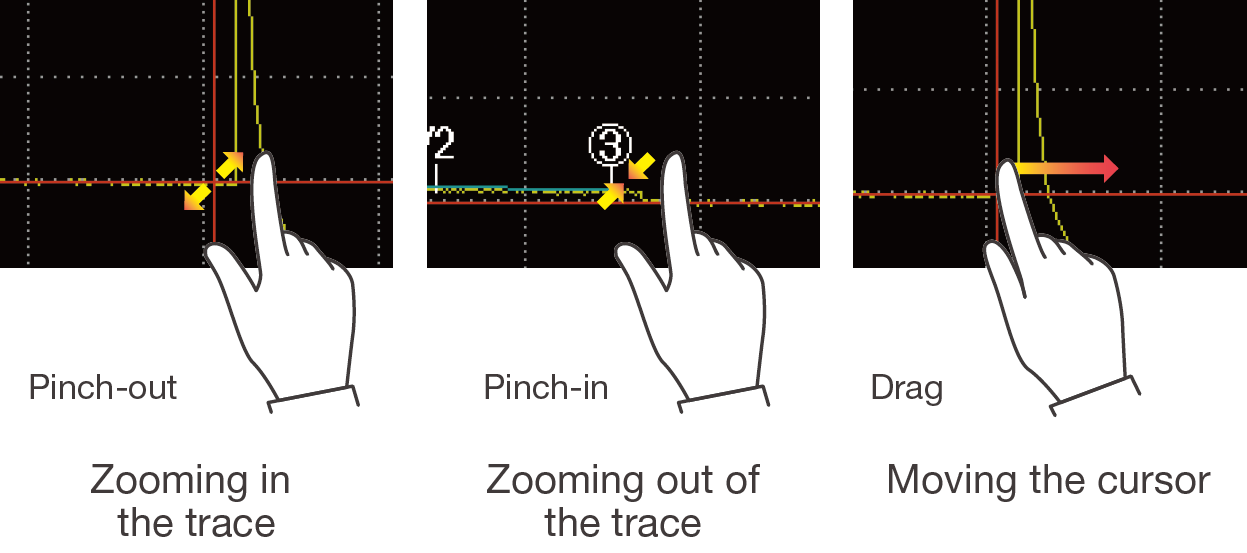

Multi-touch capacitive touchscreen
The intuitive multi-touch setup enables operations like pinch zooms and drag, similar to a smartphone or tablet.
* The touchscreen feature can be disabled for users who prefer the hardware key operations
