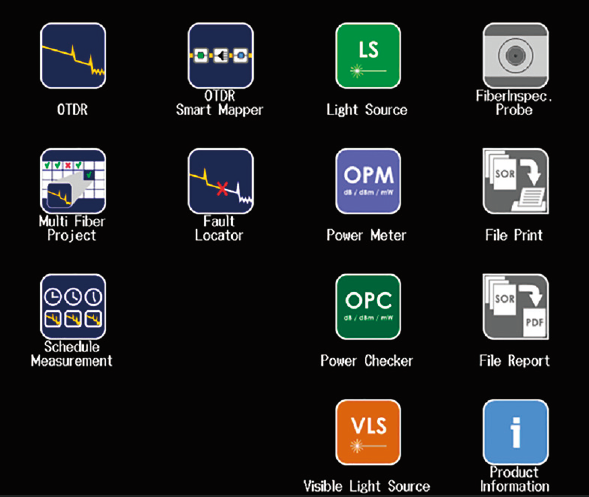

Touch panel application menu
The 8.4-inch touchscreen enables intuitive operation. Select the desired function by simply tapping the icon on the main menu.

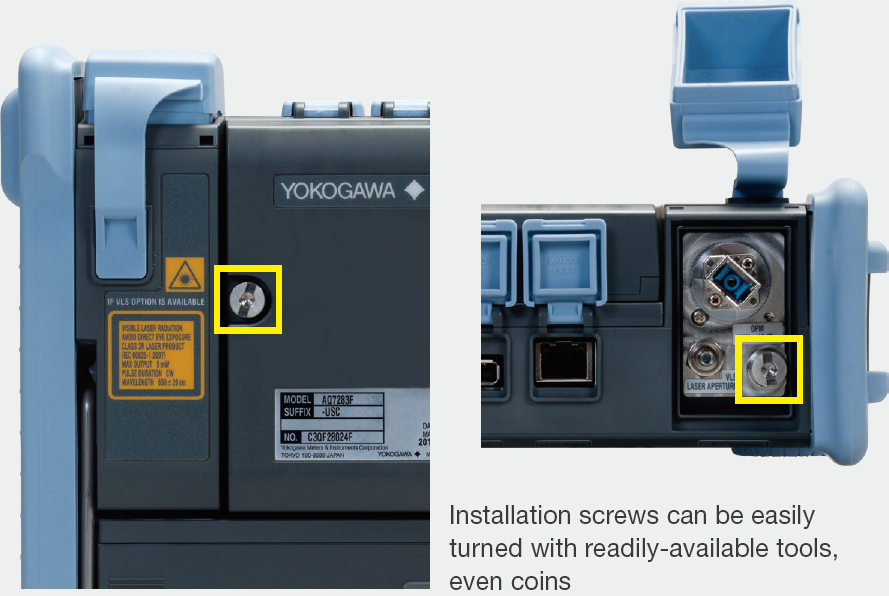

No special tools needed
The hardware for the OTDR units, option modules, and battery cover can be removed and put back using common work tools, even coins, to allow for quick and easy replacements and tweaks even when in the field.

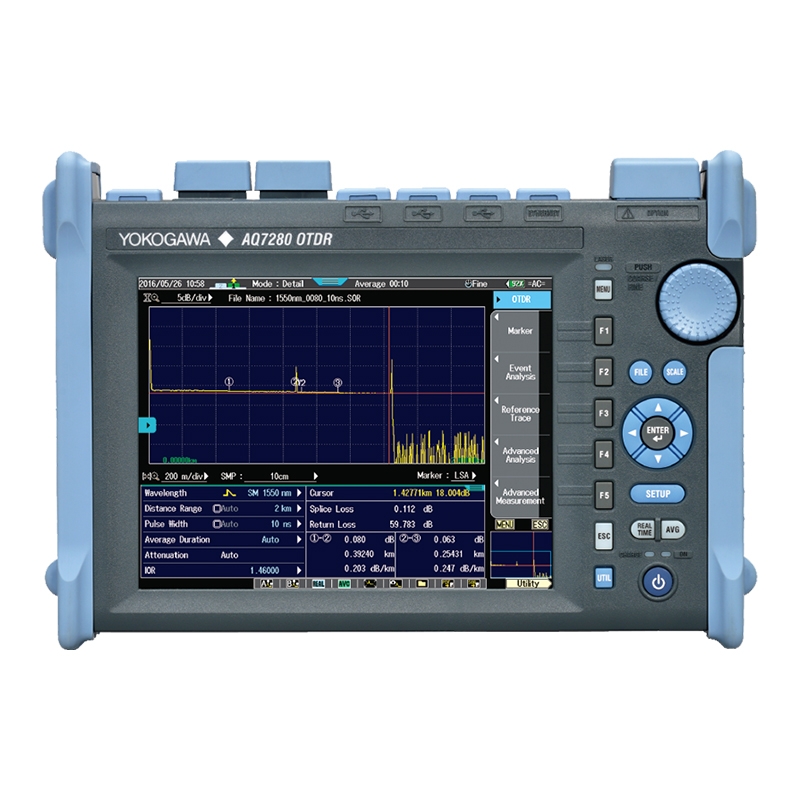

The AQ7280 satisfies a broad range of test and measurement needs in analyzing optical networks from access to core.
The AQ7280 OTDR delivers:
1. Reliability: Robust design for operating under harsh field conditions. Proven operating system assuring stability, prompt response, and superior protection against software virus attacks.
2. Ease-Of-Use: Dual operation mode by multi-touch touchscreen and hard-key buttons. Fully automatic measurement and easy-to-read analysis reports through new software applications.
3. Speed: Lightning startup time. Multi-tasking operation to enhance productivity. Immediate reporting via wireless connectivity.

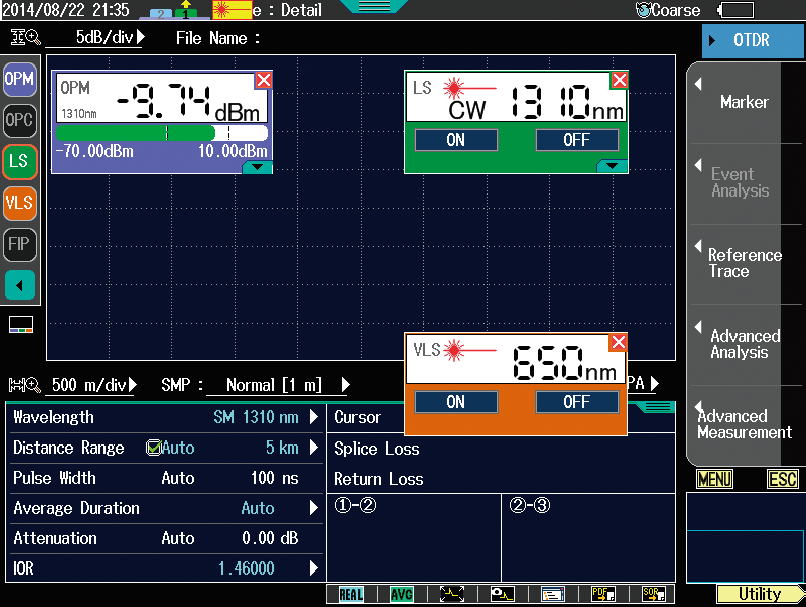

Multi-Tasking
Enhancing productivity!
Managed by a highly efficient operating system, multiple functions can work simultaneously.
Now, users can perform OTDR measurements on a particular fiber core while simultaneously checking the power level and connector surface quality on others.

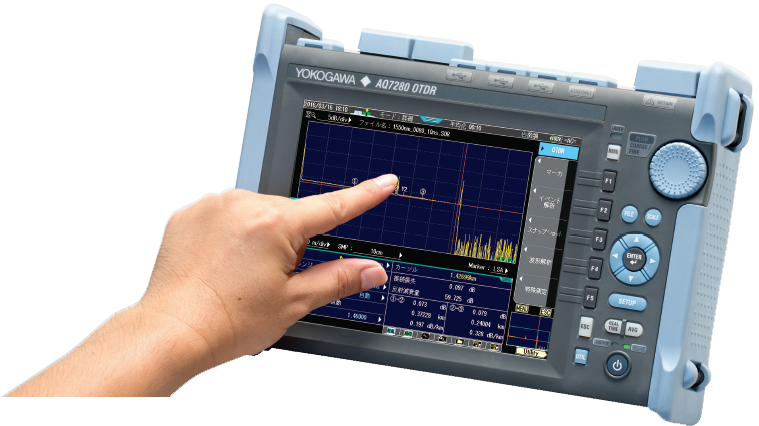

Dual-Operation Mode
Touch screen and hard-key buttons!
Tap, swipe, pinch, or press. Choose between the high resolution 8.4" multi-touch capacitive touchscreen or the robust hard-key buttons in any combination desired.
OTDR operations have never been easier!
Lightning Startup Time
Under 10 seconds!
Thanks to the latest high speed hardware and a highly efficient operating system, the AQ7280 starts up from completely OFF to measurement-ready in seconds.
It‘s always ready when you are!

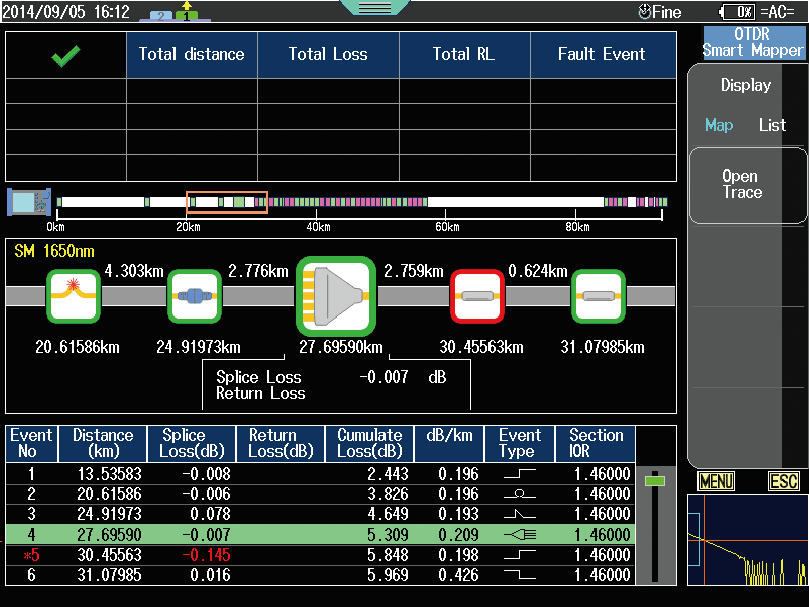

Smart Mapper
Single button measurement. Comprehensive network characterization. Easy-to-read report.
Measurement acquisitions with multiple pulse widths and smart-algorithm enable users to detect and comprehensively characterize network events by pressing one single button.
Simple, icon-based map view for easy interpretation of network events. Immediate PASS/FAIL judgment based on user-defined thresholds.
Easily toggle trace view for manual supplementary analysis.
(/SMP option is required.)

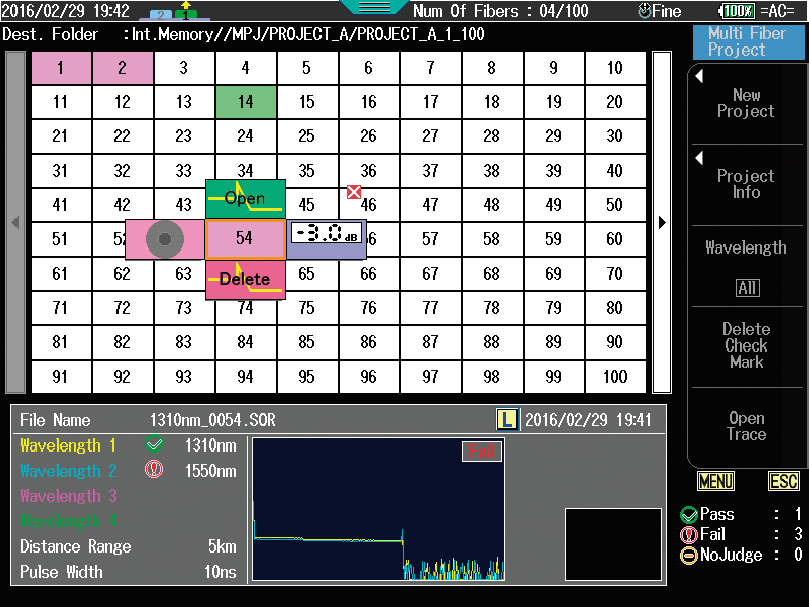

Multi-Fiber Measurement
Database view. Organized. Quick preview of network characteristics.
OTDR-based application in a database view.
Guides users in tracking multi fibers measurements in sequence.
OTDR trace, power level and connector surface image of a particular fiber core are organized as one group.
With PASS/FAIL judgment, fiber core performance is easily characterized.

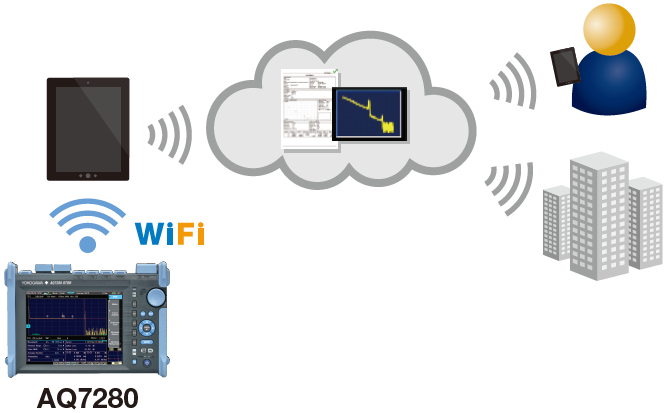

Wireless Connectivity
Remote control. Remote data transfer.
Control the OTDR remotely using WindowsTM operating system devices via wireless router connection technology.
Transfer measurements results from the OTDR to WindowsTM operating system devices via FreshAirTM* technology.
Send the results/reports by email/file transfer software for immediate reporting.
* This feature may not be available due to the discontinuation of FlashAirTM.

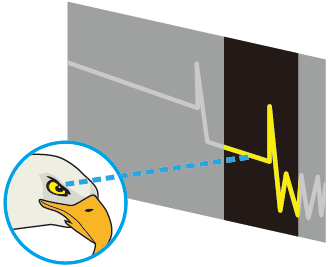

Eagle Eye
Hunt down your breakpoint precisely and promptly.
Enabling the highest possible sampling resolution in a long distance measurement range, distance offset error is reduced.
With a relatively small distance offset error, users are able to pinpoint the actual break location in high distance accuracy.
Faster location identification, faster repair time.
