6 types of Model lineup
Seven models ideal for installation and maintenance of various optical communication access networks
Compact body with long hour operation
Footprint approx. size of A5 paper, weight of 1 kg (2.2 Lbs.)
10 hours battery operation
Intuitive operation by touch and hard keys
The AQ1210 features a capacitive multi-touch touchscreen, 5.7-inch LCD, and a “field use” friendly rotary dial.
Connectivity
Data transfer and remote control via Wi-Fi or ETHERNET connection.
Enhanced OTDR performance
Measurement of PON systems with up to 128 splits
Hi-Speed real-time measurement
Functions and features for improved work efficiency
Multi-fiber measurement, Smart mapper function, PDF reporting
Much more than an OTDR
A variety of optional features for multi-tasking.

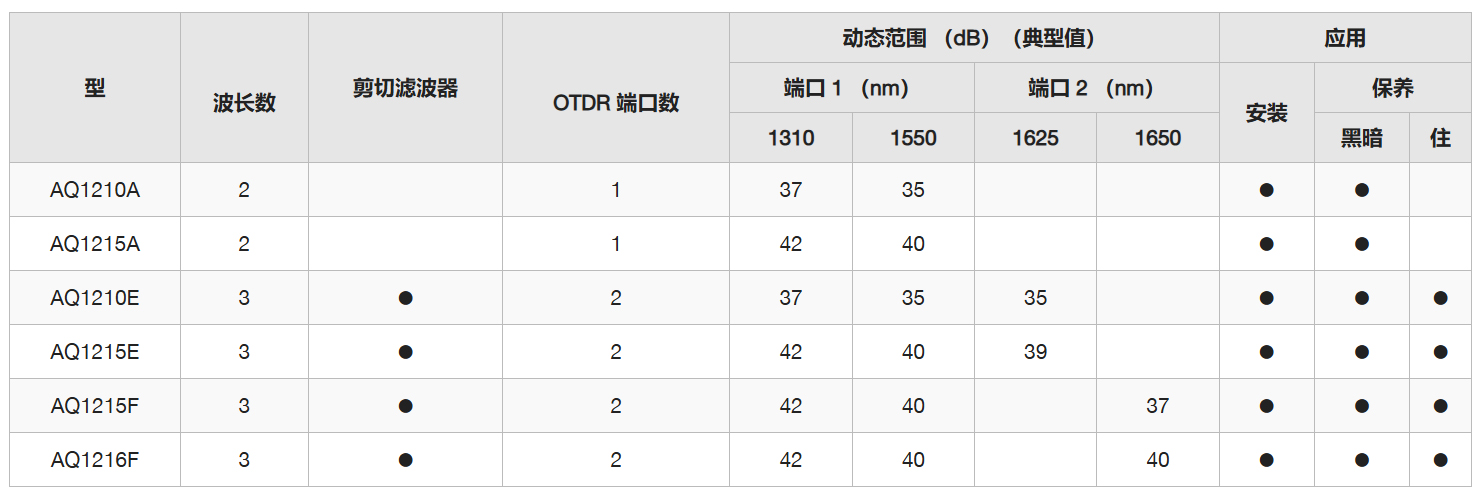

Model lineup
PON optimized
Excellent hardware performance and advanced analysis algorithm enable the AQ1210 to accurately characterize Passive Optical Networks (PON) through high-port-count splitters (up to 1 × 128)*.
The AQ1210 assists beginner/expert users in simply configuring OTDR measurement settings based on PON topology information for optimal results. Short event dead zone and high sampling resolution enable users to detect as close as 0.5 meters (<20 inches)*.
*Typical, with AQ1215A/E/F and AQ1216F
Dual-operation mode
Touchscreen and hard-key buttons
Tap, swipe, pinch or press. Choose between the high resolution 5.7-inch multi-touch capacitive touchscreen or the robust hard-key buttons in any combination desired. OTDR operations have never been easier!
High-speed, high-performance real-time measurement
When detecting/identifying the position of a fiber end point or bend of an installed optical fiber network, a user, according to the operating environment, can choose among the two modes: the high-speed mode with less measuring time and the high accuracy mode that is capable of reproducing a high-quality trace.
Multi-fiber measurement
Measurement conditions of up to 2000 cores are managed in a table, allowing efficient measurement of multi-fibers.
For each core number, OTDR measurement, loss measurement and fiber core surface image can be saved.
Cores that have been measured are highlighted in color and saved data can be shown in the preview window by selecting the core number in the table. This prevents unintended omission in core measurements and reduces your working time at a site.
Loss test
Use the light source and optical power meter to measure optical loss.*1
High power measurement
The high power optical power meter (/HPM option) can measure the high optical power up to +27 dBm. It allows to measure video services and long distance transmission lines where an optical amplifier is used to boost the optical signal power.
Auto loss test function*2
The AQ1210 can transmit the wavelength information of light source to the other AQ1210 placed at the other end to set the same wavelength for the optical power meter, and they are capable of switching the wavelengths automatically; therefore, the loss
Multi-fiber loss test*2
The Multi-fiber loss test function incorporates two AQ1210s as master and slave through the communication fiber in the cable under test. They share a test project information including fiber numbers to be tested and measurement conditions, so that you can ensure the measurement is performed properly for each fiber of the cable under test.
*1: /SPM or /HPM option is required.
*2: AQ1210, AQ1200, and AQ1100 with /SPM or /HPM option can be used.
