OTDR controlled optical switch to simplify production and installation of multi-fiber SMF*1 cables

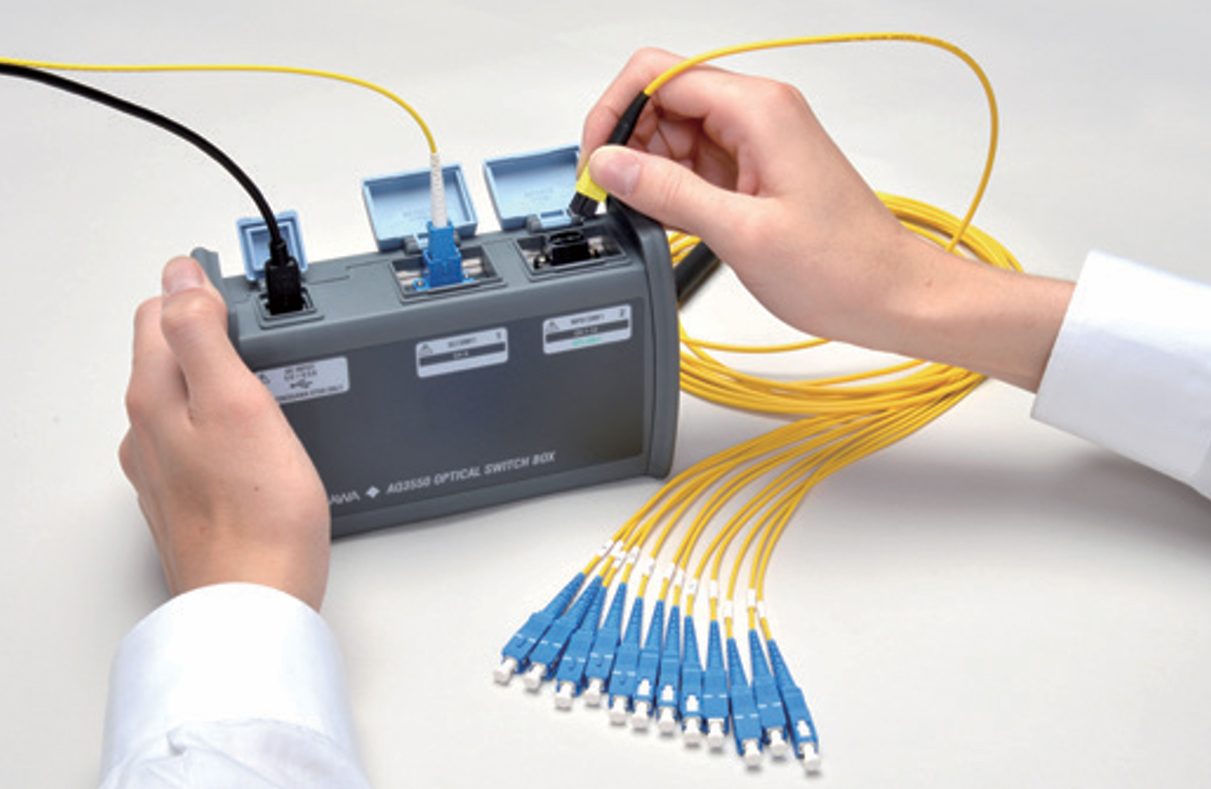

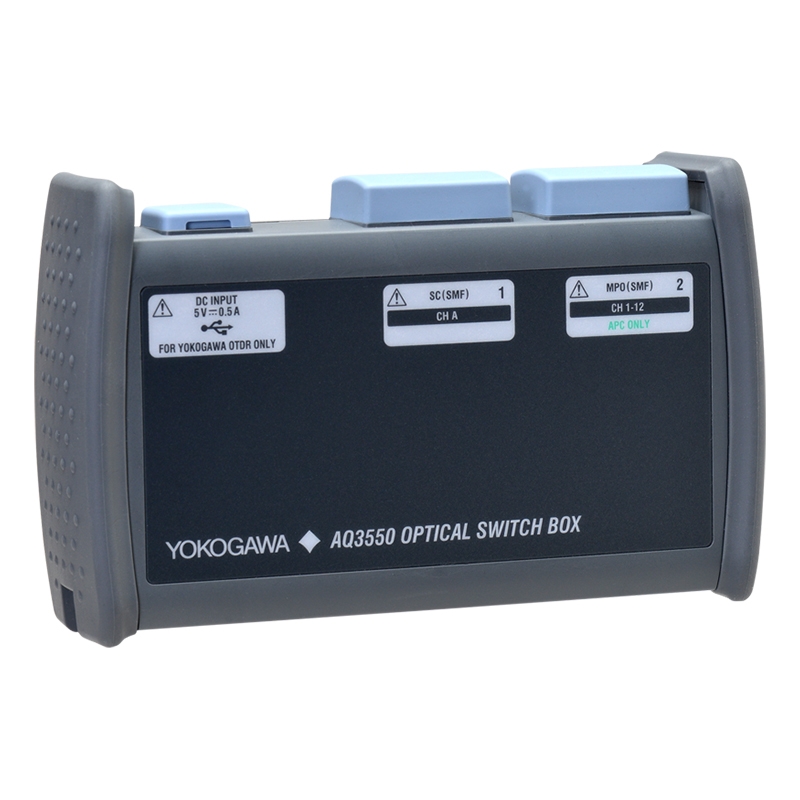

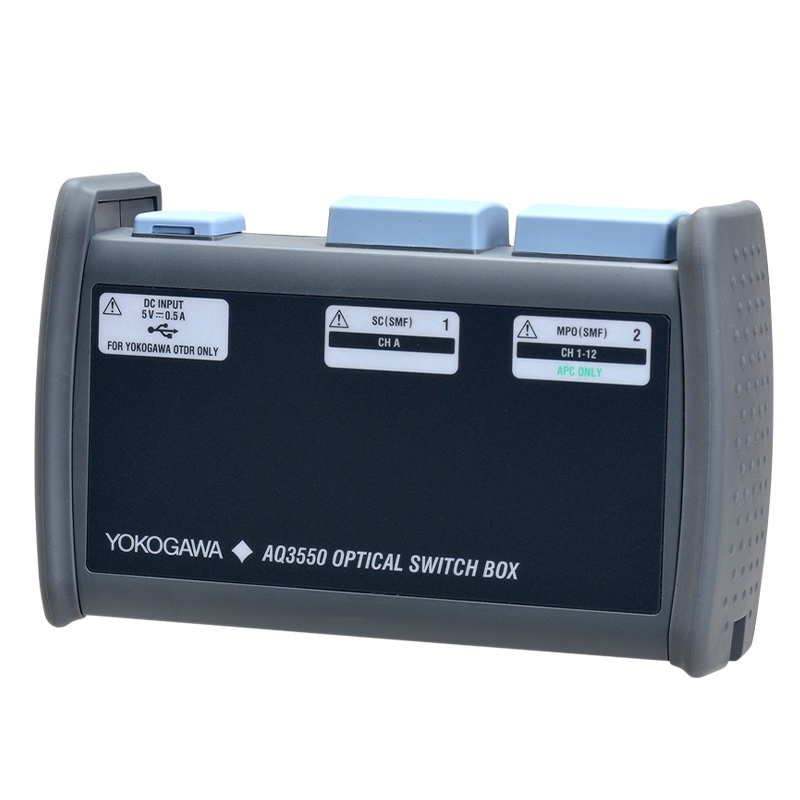

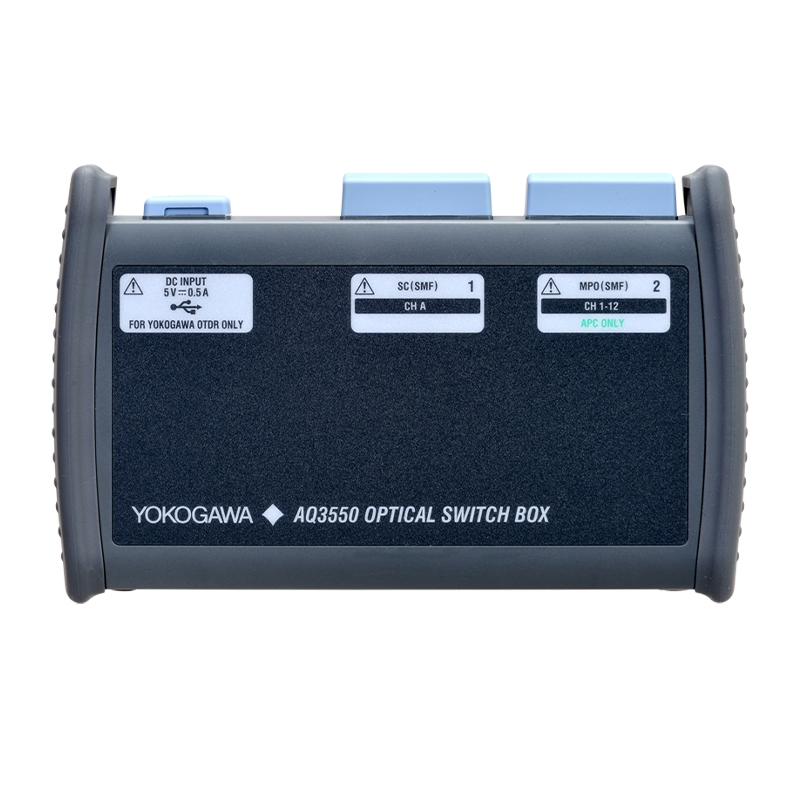

A 12-channel optical switch box that effectively improves workability with YOKOGAWA OTDRs. Controlled from an OTDR, the OSW allows continuous measurement of all or a subset of the 12 channels. The compact size makes this an ideal solution to conveniently measure multiple ribbon fibers in the field or conserve production test rack space.
Overview
• Palm-sized for carrying convenience
• Powered by OTDR USB port
• Easily controlled by OTDR
Main applications
• Optical fiber and cable manufacturing
• R&D of optical fibers and cables
• Installation of multi-fiber cables

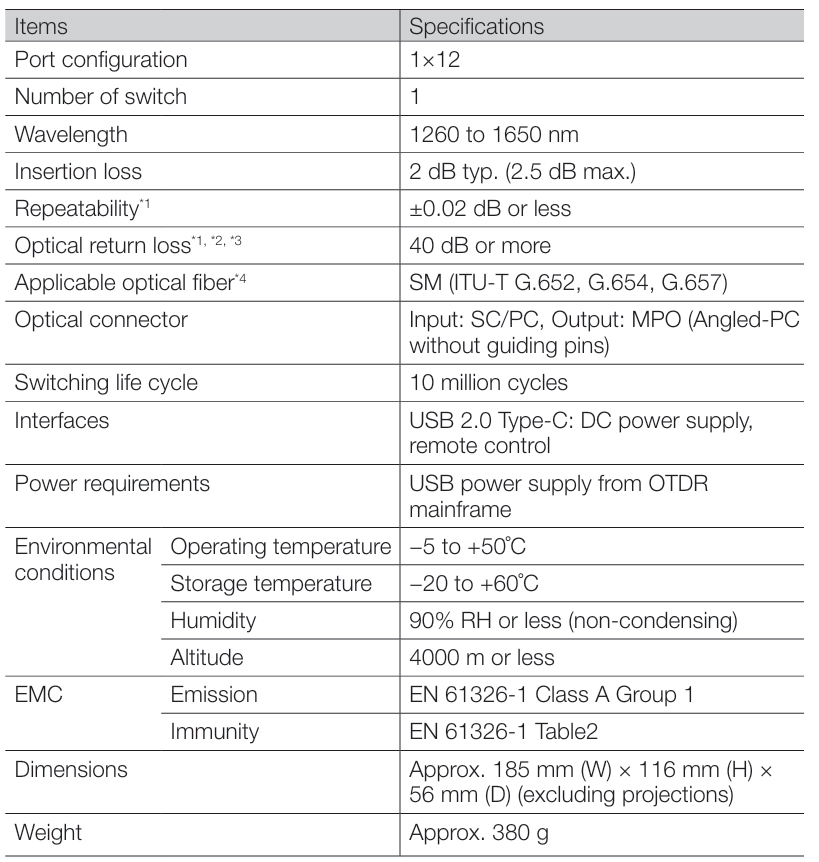

Major specifications
Note. All specifications have a constant temperature and a warm up time of 5 minutes.
If there is no notification on the connector, the definition includes the connector.
All specifications are valid at 23˚C±2˚C, unless otherwise specified.
*1 Wavelength: 1310 nm±15 nm, 1550 nm±15 nm
*2 When using the Yokogawa reference master cord
*3 When using the equivalent of an UPC connector
*4 Only ITU-T G.652 is guaranteed
