ADSS 12core 24core 48core 96core 144core 80m 100m 120m 200m span all dielectric self-surpporting aerial Optic Fiber Cable adss 48core fiber adss fibra adss

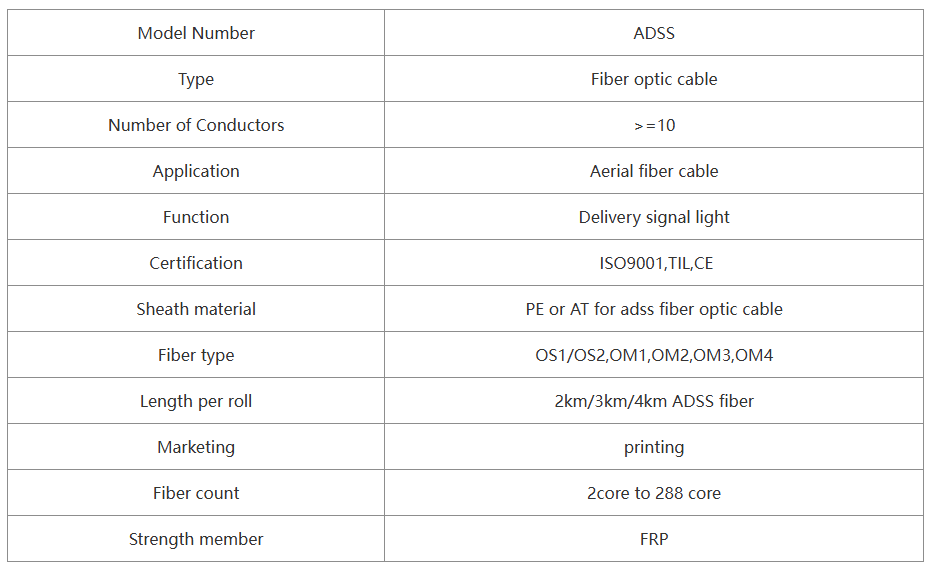

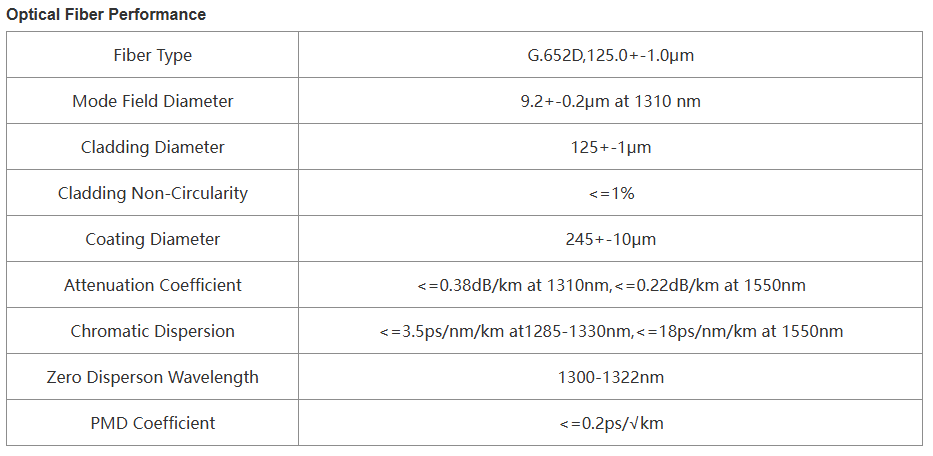

Technical Parameters

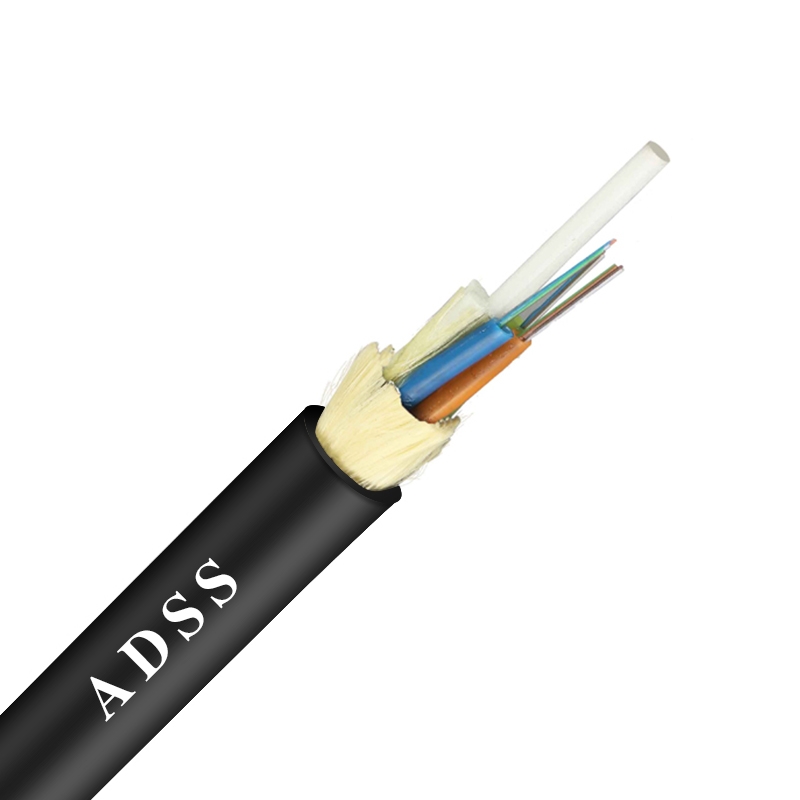

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
1. Loose tube design
Stable performance and compatibility with all common fiber types
2. Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.
3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
4.Sutable for Aerial self-support installation
