ADSS-All dry-Flat FRP-200M 12core 24core and 72core

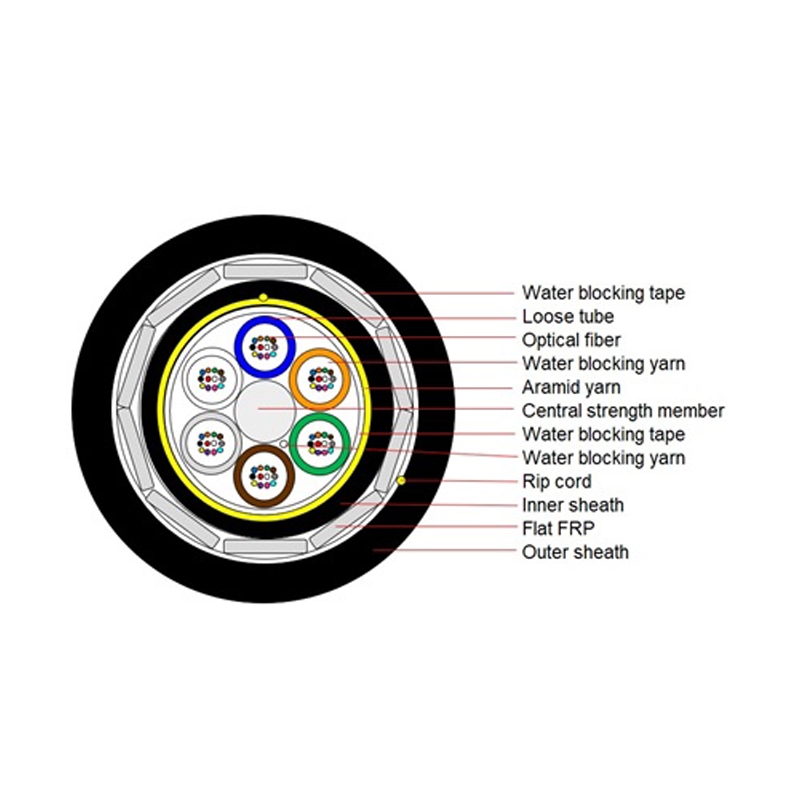

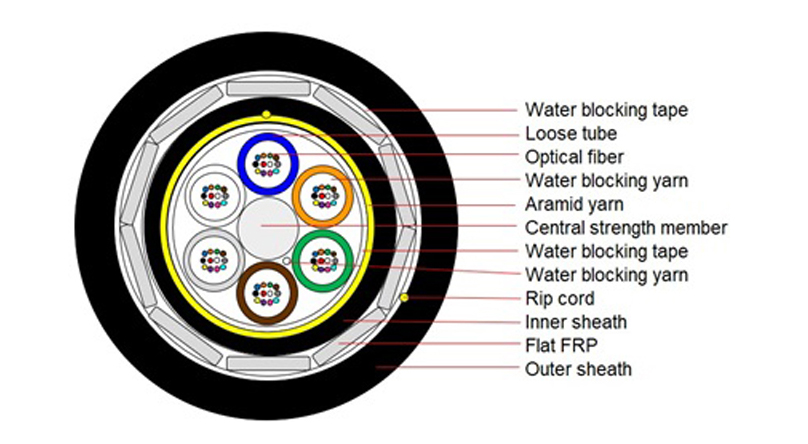

1. Cable cross-section (only for reference, not to scale)
2. Cable description
Loose tube construction, tubes with water blocking yarn filled, elements (tubes and fillers when necessary) laid up around non-metallic central
strength member(SZ), polyester yarns used to bind the cable core, water blocking tape, aramid yarns, 1 ripcord, HDPE inner sheath,
flat FRP armored for Anti-rodent, water blocking tape wrapped, 1 ripcord and HDPE outer sheath.
Useful life：30 years
wooden drum can be made according to the clients‘ specifications.
