ADSS-full dry-Single sheath-120M 144core

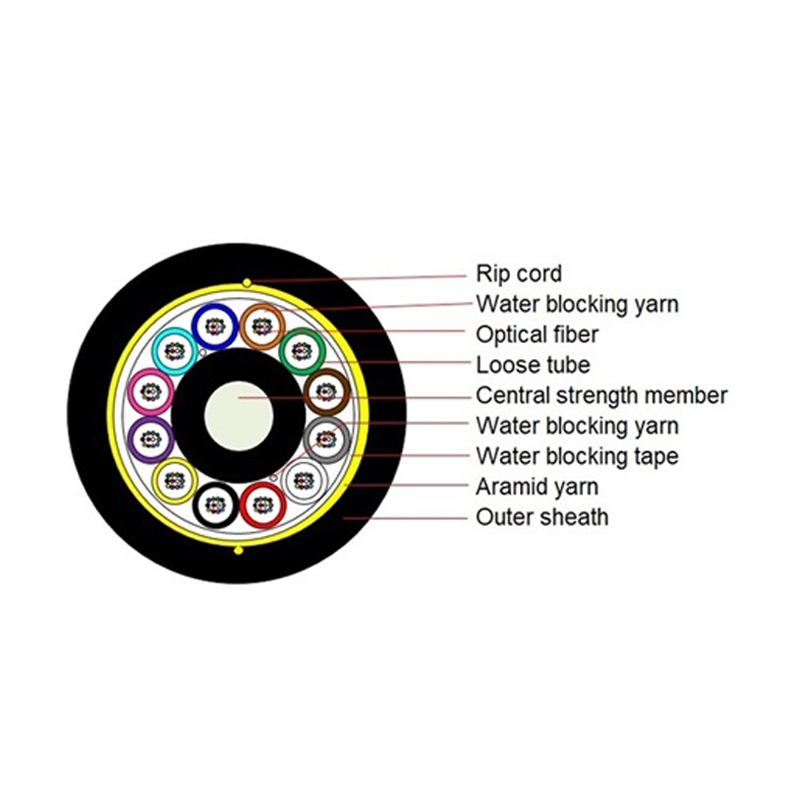

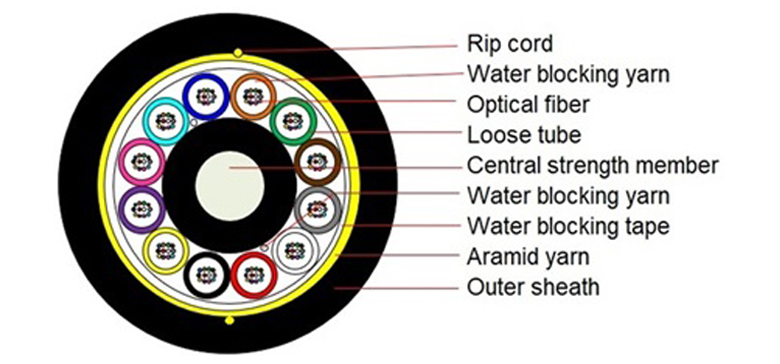

1. Cable cross-section (only for reference, not to scale)
2. Cable description
Loose tube construction, tubes with water blocking yarn filled, elements (tubes) laid up around non-metallic central strength member(SZ),
polyester yarns used to bind the cable core, water blocking tape, aramid yarns, 2 ripcord, and HDPE outer sheath.
Useful life: 30 years
wooden drum can be made according to the clients‘ specifications.
