ADSS cable outdoor adss fiber optic cable adss all dielectric self surpporting adss fiber adss 12 core 24 core adss fiber cable 96 core adss fiber optic cable adss fiber optic cables fibra optica adss adss fiber optical adss 48 core adss 96 fiber cable

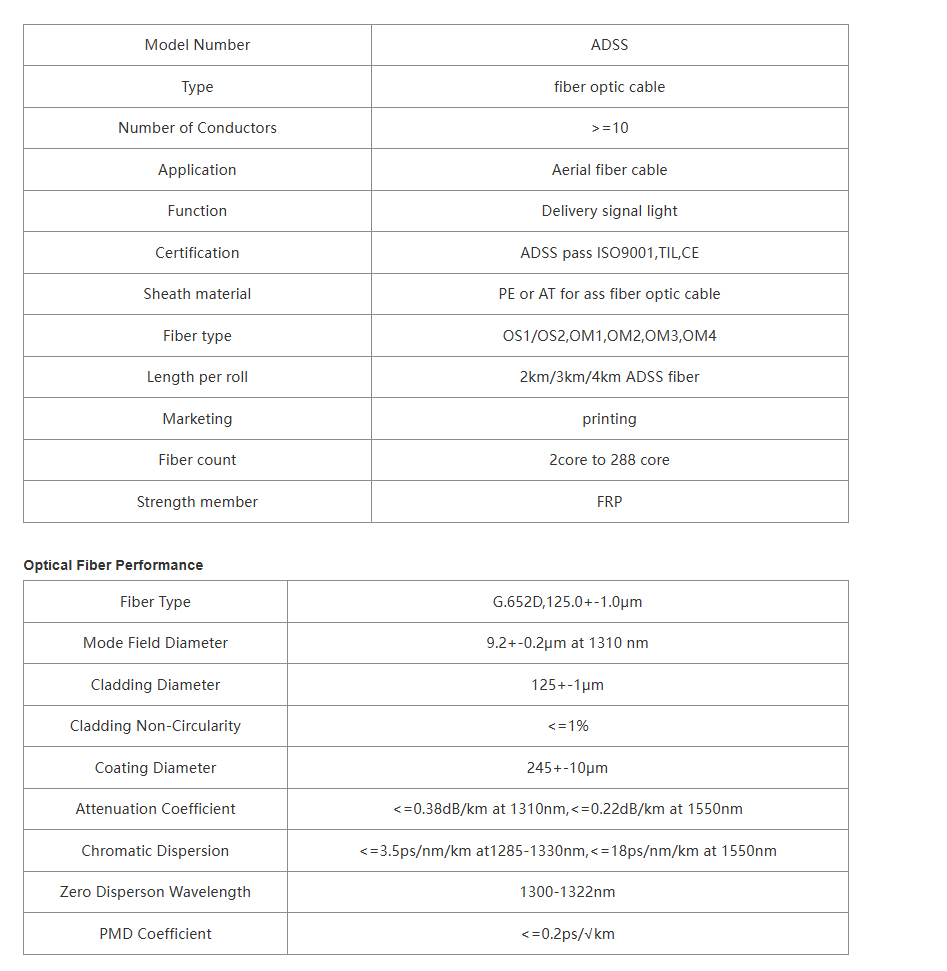

Technical Parameters

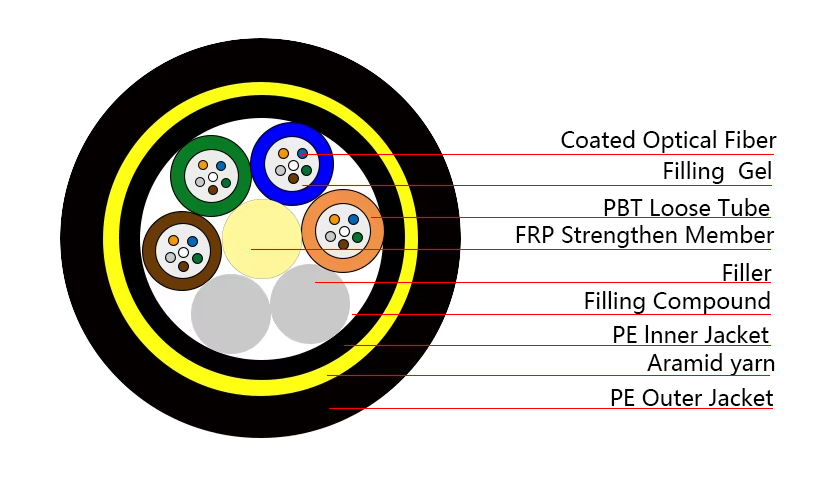

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
1. Loose tube design
Stable performance and compatibility with all common fiber types
2. Self-supporting
Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.
3.Track-resistant &jacket available
For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
4.Sutable for Aerial self-support installation
