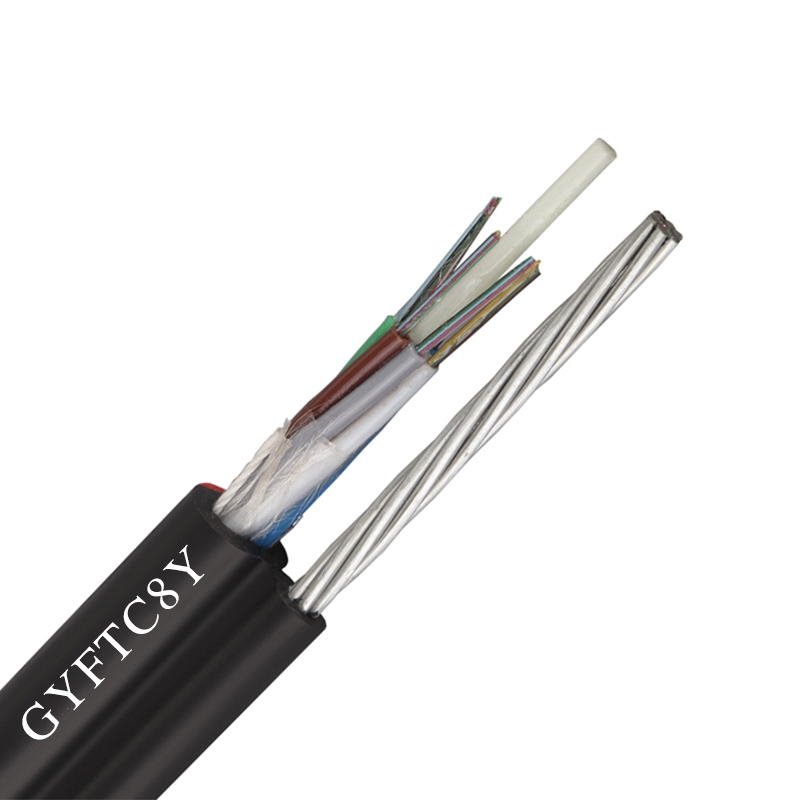

GYFTC8Y or GYTC8Y outdoor fiber optic cable multicore fiber optic cable simplex fiber optic cable

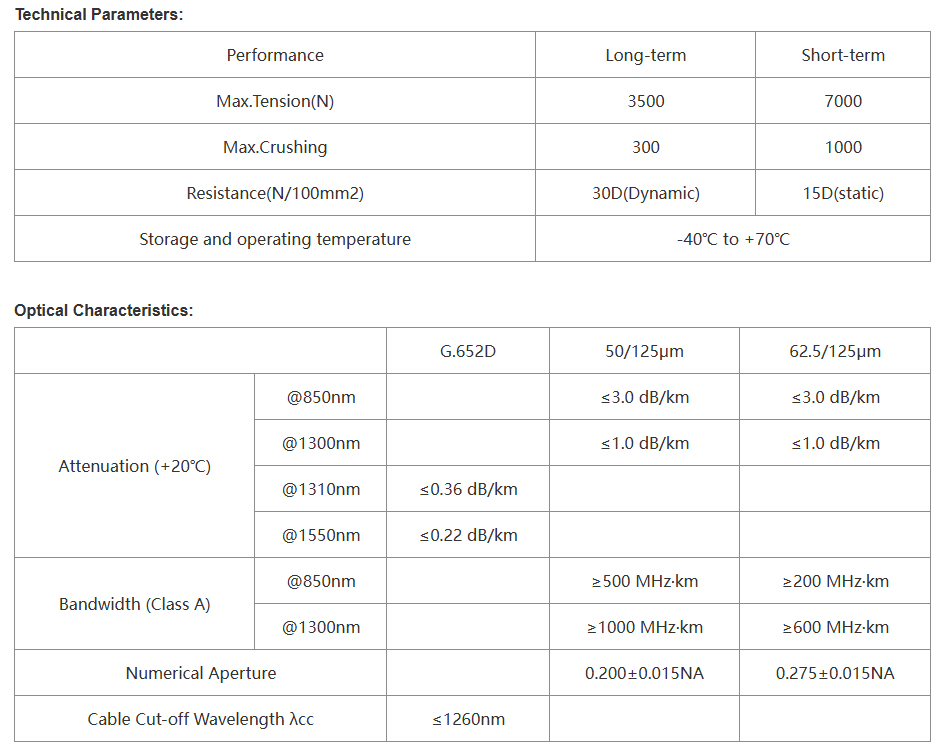

Cable Specification:
Item Name:Fiber optical cable GYFTC8Y
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 25 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

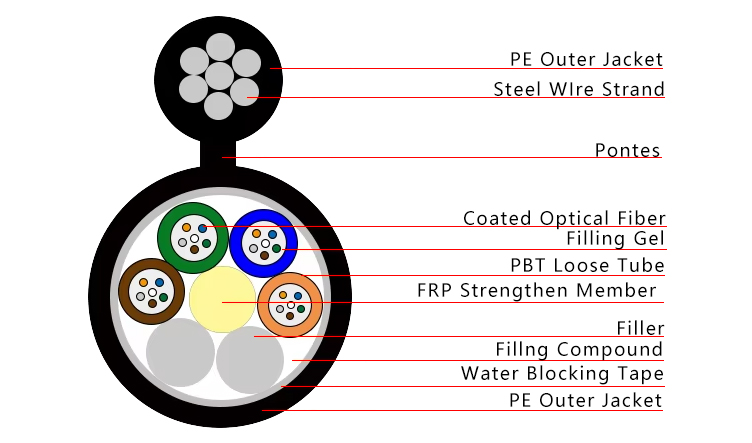

Structure:
Figure 8 non armoured fiber cable consists of :
1.Stranded loose tube
2.FRP strength member
3.Core filler compound
4.Fillers
5.Phosphating or Galvanized steel wire
6.PE sheath
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
