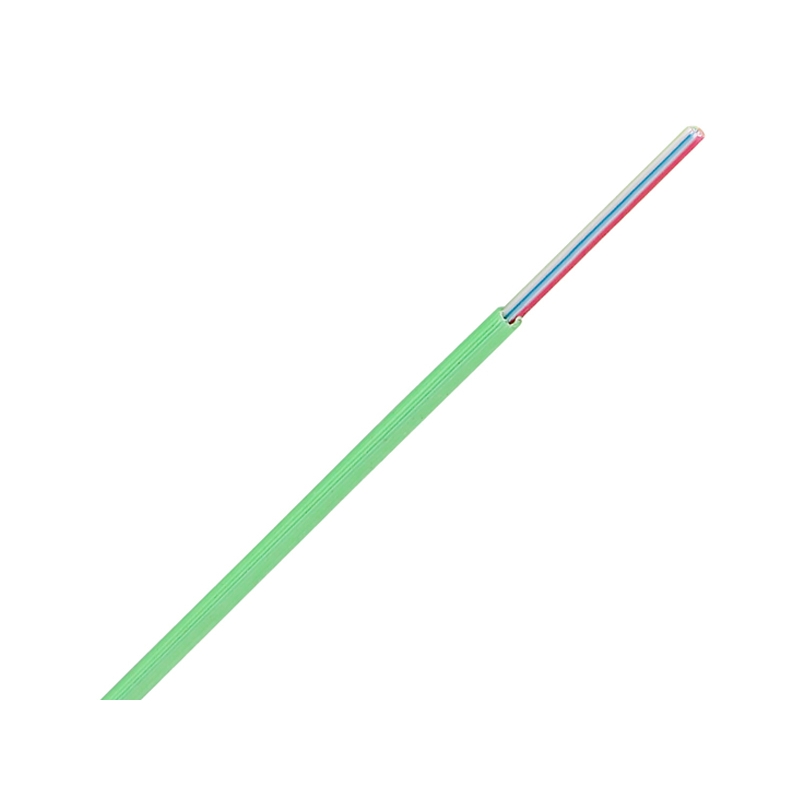

multi core low friction micro air blown cable fiber optic cable fiber unit
Features and Benefits
2,4,6,8 and 12 fibres options.
Stable structure, good mechanical and temperature performance.
Designed with special grooves to advance blowing distance.
Lightweight and proper stiffness , repeat installation.
Designed with no gel, easy stripping and handling.
Better costs advantage compared to traditional product.
Complete accessories, less manpower, lower installation time.
Standards
Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
Optical Fibre: ITU-T G.651,G.652,G.655,G.657
IEC 60793-2-10,IEC 60793-2-50
Optica Cable: IEC 60794-1-2,IEC 60794-5
Sheath Color
Green, and sheath color can also be determined by customer.
Sheath Marking
The outer sheath is marked in 1 meter intervals as follows:
SURELINK ABF type of fibre and number (Fibre Color) [MM-YY] =length marking in meter=
Example: SURELINK ABF G652D 4F (BLU-ORG-GRN-RED) [12- 08] =1888m=
Delivery Length
Standard delivery lengths are 1000m, 2000m, 4000m, 6000m with a tolerance of -0.5~+1%. For more options, please contact the customer service.
